1513431
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

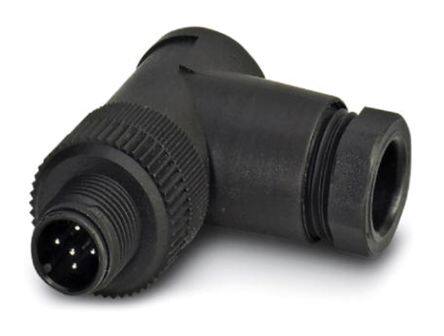

Conn Sensor Actuator M 5 POS Screw RA Cable Mount 1 Port
PDF
/
Buying Options
Total Price: USD $13.07
Unit Price: USD $13.068
≥1 USD $13.068
≥10 USD $12.02256
≥100 USD $11.107888
≥500 USD $10.58508
≥1000 USD $10.526982
Inventory: 50
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Shell Material Plastic
Weight 19.999993g
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Polyamide (PA), Nylon
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2011
Series SACC
Feature Backshell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Plug, Male Pins
Number of Positions 5
Color Black
Voltage - Rated 48VAC 60VDC
Fastening Type Threaded
Voltage - Rated DC 60V
Contact Finish - Mating Copper Alloy
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 5
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Size - Insert M12-5
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Thread Size M12
Compliance
Material Flammability Rating UL94 HB
REACH SVHC Unknown
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
