Package Metal
Category Connectors, Interconnects / Circular Connectors

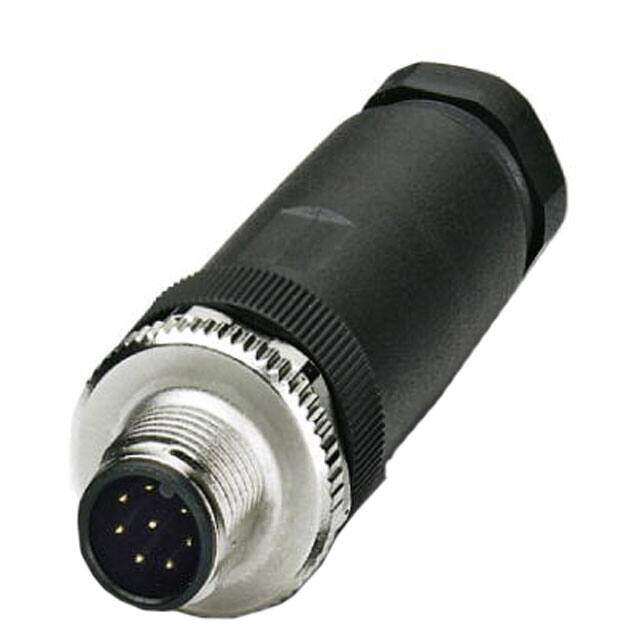

Description Circular Metric Connectors M12 PLG 8P PG BLACK
PDF
/
Buying Options
Total Price: USD $28.92
Unit Price: USD $28.9168
≥1 USD $28.9168
≥10 USD $26.6024
≥100 USD $24.578576
≥500 USD $23.421992
≥1000 USD $23.293389
Inventory: 469
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB

Technical

Thread Size M12
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M12-8
Shell Finish Nickel
Current Rating 2A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 8
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 30VAC/DC
Color Black, Silver
Number of Positions 8
Connector Type Plug, Male Pins
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
JESD-609 Code e4
Series SACC
Published 2009
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Weight 22.700002g
Housing Material Zinc
Shell Material Zinc Die Cast
Insulation Material Plastic
Package / Case Metal
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 4 Weeks
