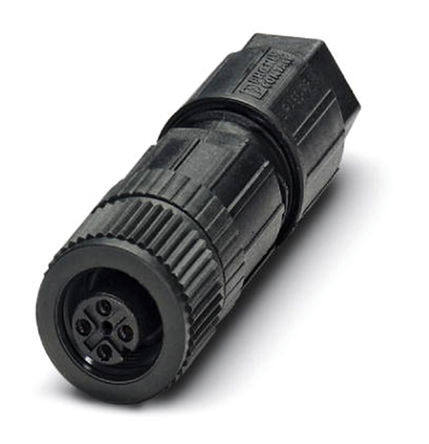

1513237 image
Favorite
1513237 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description Circular Metric Connectors SACC-M12FS-4 SC
PDF
/
Inventory: 1399
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings Dust Tight, IP65, Water Resistant
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Thread Size M12
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Backshell Type SOLID
Empty Shell NO
Shell Size - Insert M12-4
Current Rating 4A
Ingress Protection IP65 - Dust Tight, Water Resistant
Orientation A
Total Number of Contacts 4
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 250V
Color Black
Number of Positions 4
Connector Type Receptacle, Female Sockets
Termination Spring-Cage
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Backshell, Coupling Nut
JESD-609 Code e4
Series SACC
Published 2011
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Insert Material Polyamide (PA66), Nylon 6/6
Weight 12.560001g
Shell Material Plastic
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Tin

Supply Chain

Factory Lead Time 3 Weeks
