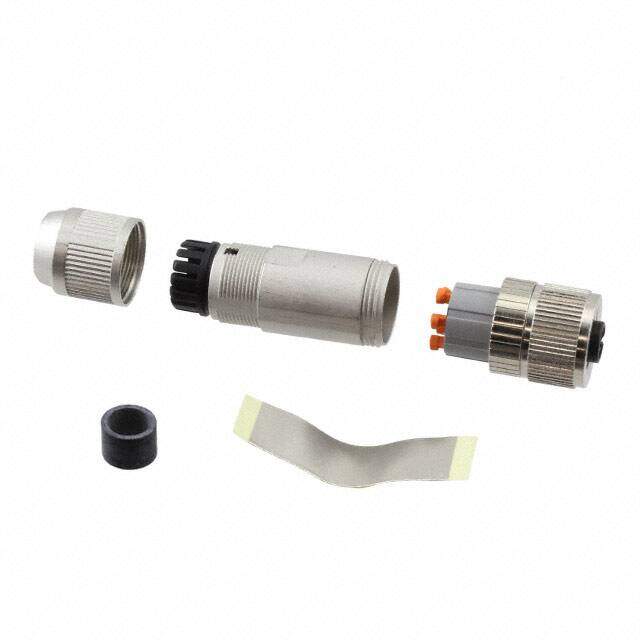

1512571
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Metric Connectors SACC-M12FS-5 SC SH
PDF
/
Inventory: 1154
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Copper Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Brass
Housing Material Metal
Weight 52.059987g
Insert Material Polyamide (PA66), Nylon 6/6
Backshell Material, Plating Zinc Die Cast, Nickel
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2011
Series SACC
Feature Backshell, Coupling Nut
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Spring-Cage
Connector Type Receptacle, Female Sockets
Number of Positions 5
Color Silver
Voltage - Rated 48VAC 60VDC
Fastening Type Threaded
Contact Finish - Mating Gold
Orientation A
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 11mm
Reach Compliance Code unknown
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-5
Contact Gender Female
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Thread Size M12
Dimensions
Length 58mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
