1511860
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

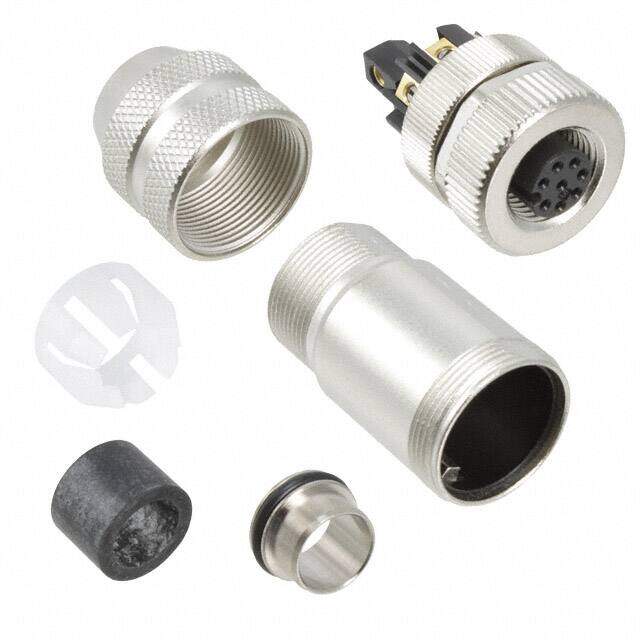

Circular Metric Connectors M12 SKT 8P PG NICKEL
PDF
/
Buying Options
Total Price: USD $30.25
Unit Price: USD $30.2456
≥1 USD $30.2456
Inventory: 163
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Housing Material Zinc
Weight 52.770001g
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Zinc Die Cast, Nickel
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2007
Series SACC
JESD-609 Code e4
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Termination Screw
Connector Type Receptacle, Female Sockets
Color Silver
Voltage - Rated 30VAC/DC
Fastening Type Threaded
Contact Finish - Mating Gold
DIN Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 8
Orientation A
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 2A
Shell Finish Nickel
Shell Size - Insert M12-8
Contact Gender Female
Body Depth 2.2 inch
Max Current Rating 2A
Number of Ports 1
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Thread Size M12
Compliance
Material Flammability Rating UL94 HB
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
