1511857
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors
Description

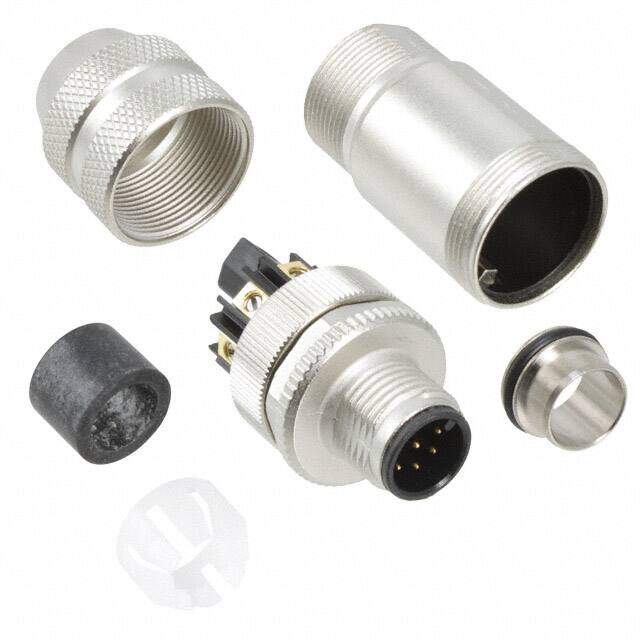

Circular Metric Connectors M12 PLG 8P PG NICKEL
PDF
/
Buying Options
Total Price: USD $35.21
Unit Price: USD $35.2088
≥1 USD $35.2088
≥10 USD $32.3884
≥100 USD $29.923872
≥500 USD $28.515608
≥1000 USD $28.359091
Inventory: 457
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Thread Size M12
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Number of Ports 1
Plating Brass
Max Current Rating 2A
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M12-8
Shell Finish Nickel
Current Rating 2A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation A
Total Number of Contacts 8
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 30VAC/DC
Color Silver
Connector Type Plug, Male Pins
Termination Screw
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
JESD-609 Code e4
Series SACC
Published 2007
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Polyamide (PA), Nylon
Weight 47.520009g
Housing Material Zinc
Shell Material Zinc Die Cast
Package / Case Metal
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
