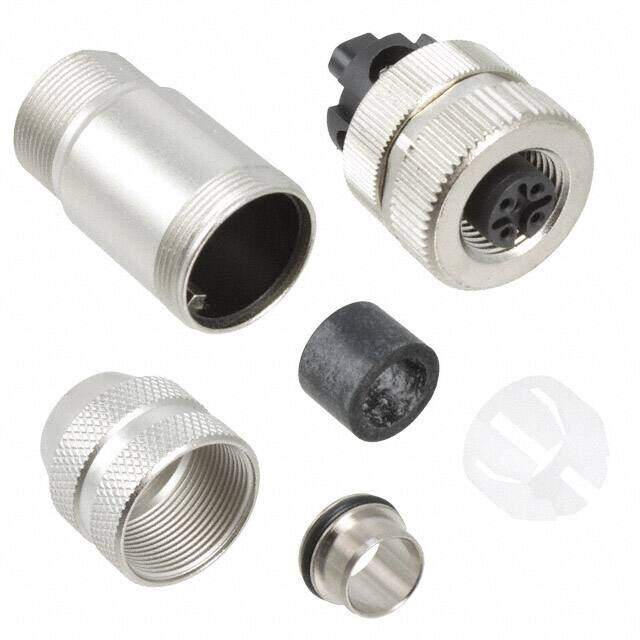

1508365 image
Favorite
1508365 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description Circular Metric Connectors SACC-M12FS-5CON PG9 SH AU
PDF
/
Buying Options
Total Price: USD $29.52
Unit Price: USD $29.5152
≥1 USD $29.5152
≥10 USD $27.1568
≥100 USD $25.090208
≥500 USD $23.909512
≥1000 USD $23.778269
Inventory: 104
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 HB

Technical

Thread Size M12
Cable Opening 0.256 ~ 0.335 (6.50mm ~ 8.50mm)
Number of Ports 1
Plating Brass
Max Current Rating 4A
Insulation Resistance 100MOhm
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Approval Agency IEC, UL
Shell Size - Insert M12-5
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation A
Total Number of Contacts 5
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 48VAC 60VDC
Gender Receptacle
Color Silver
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
Series SACC
Published 2009
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Polyamide (PA66), Nylon 6/6
Weight 51.900011g
Housing Material Zinc
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 4 Weeks
