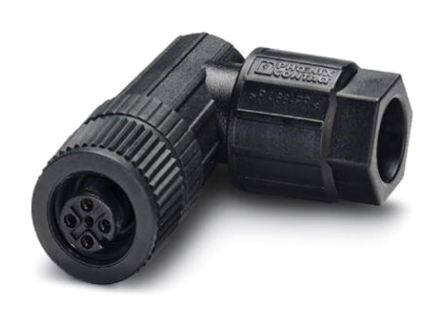

1508255 image
Favorite
1508255 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description Plug-in connector SACC-M12FR-5SC 1508255 Phoenix Contact
PDF
/
Inventory: 1262
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Current Rating (Amps) 4A
Total Number of Contacts 5
Orientation A
Ingress Protection IP65 - Dust Tight, Water Resistant
Shell Size - Insert M12-5
Empty Shell NO
Backshell Type SOLID
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Fastening Type Threaded
Voltage - Rated 60V
Color Black
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Spring-Cage
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Feature Backshell, Coupling Nut
JESD-609 Code e4
Series SACC
Published 2015
Packaging Bulk
Operating Temperature -40°C~85°C

Compliance

Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant

Physical

Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Plastic
Mounting Type Free Hanging (In-Line), Right Angle
Mount Plug-In
Contact Material Copper Tin
