1508239
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

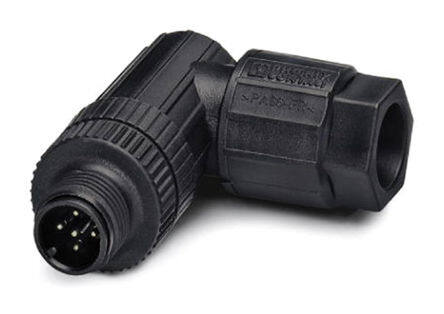

Plug-in connector SACC-M12MR-5SC 1508239 Phoenix Contact
PDF
/
Inventory: 1130
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Tin
Mount Plug-In
Mounting Type Free Hanging (In-Line), Right Angle
Shell Material Plastic
Insert Material Polyamide (PA66), Nylon 6/6
Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2015
Series SACC
JESD-609 Code e4
Feature Backshell
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Spring-Cage
Connector Type Plug, Male Pins
Number of Positions 5
Color Black
Voltage - Rated 60V
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Current Rating (Amps) 4A
Total Number of Contacts 5
Orientation A
Ingress Protection IP65 - Dust Tight, Water Resistant
Shell Size - Insert M12-5
Empty Shell NO
Backshell Type SOLID
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
