RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors

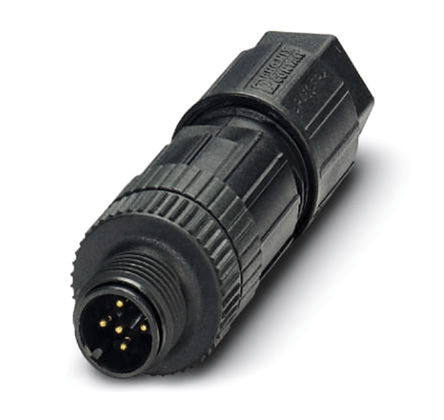

Description Circular Metric Connectors SACC-M12MS-5SC
PDF
/
Inventory: 1306
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Thread Size M12
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M12-5
Current Rating 4A
Ingress Protection IP65 - Dust Tight, Water Resistant
Orientation A
Total Number of Contacts 5
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 60V
Color Black
Number of Positions 5
Connector Type Plug, Male Pins
Termination Spring-Cage
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Feature Backshell
JESD-609 Code e4
Series SACC
Published 2012
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Insert Material Polyamide (PA66), Nylon 6/6
Weight 11.460011g
Shell Material Plastic
Mounting Type Free Hanging (In-Line)
Contact Material Copper Tin
