1507052
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

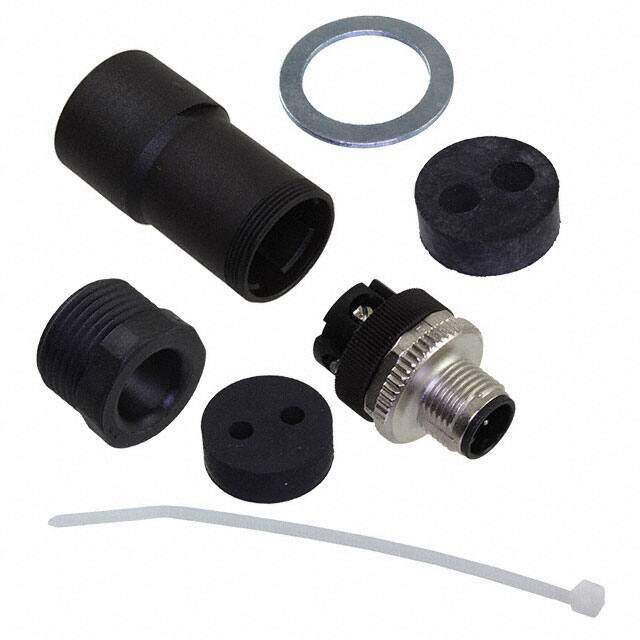

Circular Metric Connectors SACC-M12MS-4CON- PG11-DUO-M
PDF
/
Buying Options
Total Price: USD $15.91
Unit Price: USD $15.9104
≥1 USD $15.9104
≥10 USD $14.6388
≥100 USD $13.52472
≥500 USD $12.888216
≥1000 USD $12.817411
Inventory: 39
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Technical
Thread Size M12
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M12-4
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 4
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Copper Alloy
Fastening Type Threaded
Voltage - Rated 250V
Color Black, Silver
Number of Positions 4
Connector Type Plug, Male Pins
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
Series SACC
Published 2012
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Weight 30.599993g
Housing Material Plastic
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 7 Weeks
