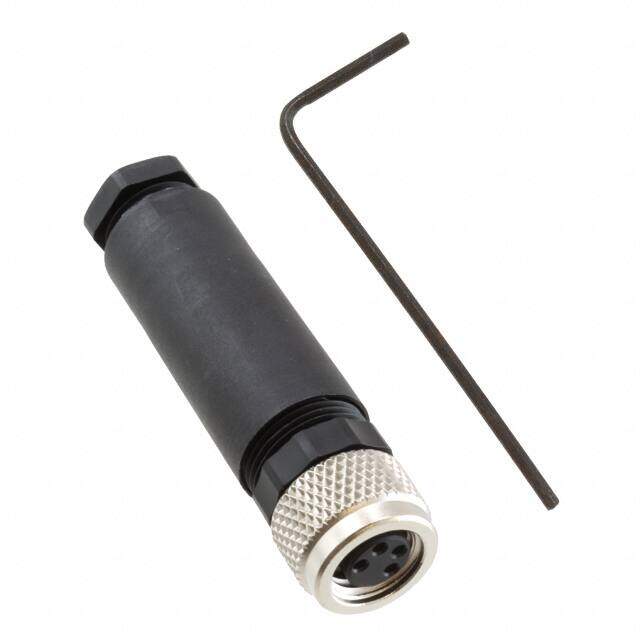

1506891
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Metric Connectors M8 SKT 4P SCREW TERM
PDF
/
Buying Options
Total Price: USD $18.66
Unit Price: USD $18.656
≥1 USD $18.656
≥10 USD $17.15912
≥100 USD $15.853904
≥500 USD $15.10784
≥1000 USD $15.024909
Inventory: 347
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Brass
Housing Material Plastic
Weight 11.199989g
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2009
Series SACC
JESD-609 Code e4
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination Screw
Connector Type Receptacle, Female Sockets
Color Black, Silver
Voltage - Rated 30VAC/DC
Fastening Type Threaded
Voltage - Rated DC 30V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 4
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M8-4
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Max Current Rating 4A
Number of Ports 1
Cable Opening 0.138 ~ 0.197 (3.50mm ~ 5.00mm)
Thread Size M8
Dimensions
Length 37mm
Compliance
Material Flammability Rating UL94 HB
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
