1506888
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

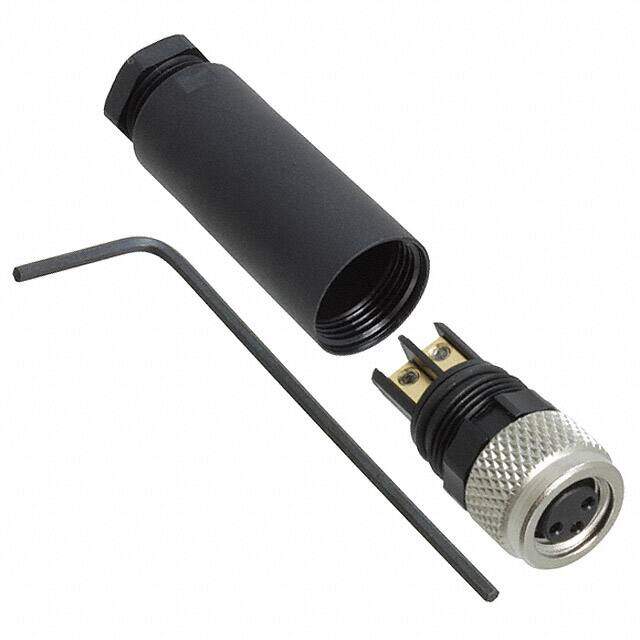

Circular Metric Connectors M8 SKT 3P SCREW TERM SACC-M-8FS-3CON-M-SW
PDF
/
Buying Options
Total Price: USD $17.78
Unit Price: USD $17.7848
≥1 USD $17.7848
≥10 USD $16.36536
≥100 USD $15.12016
≥500 USD $14.408592
≥1000 USD $14.329498
Inventory: 598
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Dimensions
Length 37mm
Technical
Thread Size M8
Cable Opening 0.138 ~ 0.197 (3.50mm ~ 5.00mm)
Number of Ports 1
Plating Brass, Nickel
Max Voltage Rating (AC) 60V
Insulation Resistance 100MOhm
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Approval Agency IEC, UL
Shell Size - Insert M8-3
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 3
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 125V
Fastening Type Threaded
Voltage - Rated 48VAC 60VDC
Gender Receptacle
Color Black, Silver
Connector Type Receptacle, Female Sockets
Termination Screw
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
JESD-609 Code e4
Series SACC
Published 2007
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polybutylene Terephthalate (PBT)
Insert Material Polyamide (PA), Nylon
Weight 10.840007g
Housing Material Plastic
Shell Material Brass
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
