Package /
Category Connectors, Interconnects / Circular Connectors

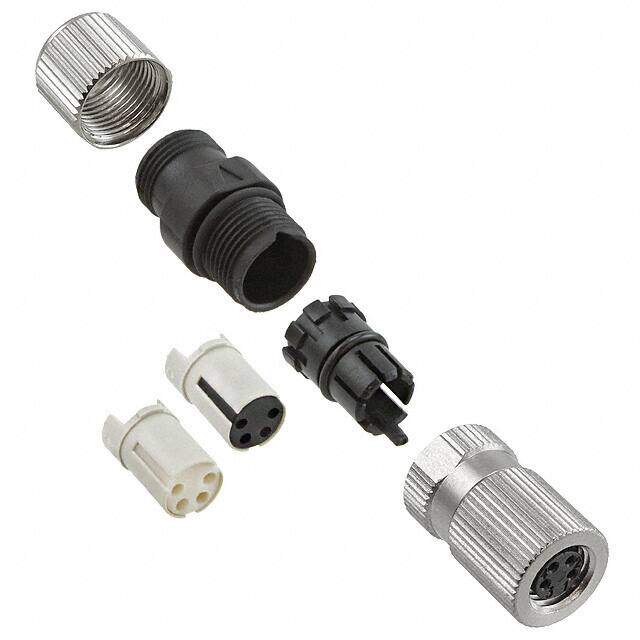

Description Circular Metric Connectors M8 SENSOR SKT 4P
PDF
/
Buying Options
Total Price: USD $23.17
Unit Price: USD $23.1704
≥1 USD $23.1704
≥10 USD $21.31272
≥100 USD $19.691232
≥500 USD $18.764504
≥1000 USD $18.661491
Inventory: 41
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Contact Material Copper Zinc
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Brass
Housing Material Polyamide
Weight 15.9g
Insert Material Polyamide (PA66), Nylon 6/6
Backshell Material, Plating Polyamide (PA66), Nylon 6/6

Technical

Operating Temperature -25°C~85°C
Packaging Bulk
Published 2011
Series SACC
JESD-609 Code e4
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination Axial Pierce
Connector Type Receptacle, Female Sockets
Color Black, Silver
Gender Male
Voltage - Rated 30VAC/DC
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 4
Orientation A
Ingress Protection IP68 - Dust Tight, Waterproof
Depth 3mm
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M8-4
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Max Voltage Rating (AC) 30V
Number of Ports 1
Cable Opening 0.118 ~ 0.197 (3.00mm ~ 5.00mm)
Thread Size M8
Wire/Cable Diameter 5 mm

Dimensions

Length 33.9mm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, IP68, Waterproof
