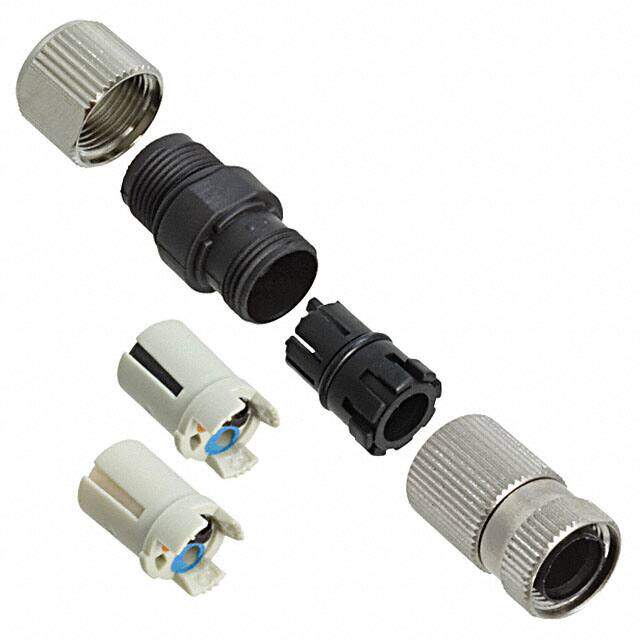

1506778 image
Favorite
1506778 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description Circular Metric Connectors M8 3P FEMALE SACC-M 8FS-3PCON
PDF
/
Buying Options
Total Price: USD $20.33
Unit Price: USD $20.328
≥1 USD $20.328
≥10 USD $18.7044
≥100 USD $17.281088
≥500 USD $16.46788
≥1000 USD $16.377469
Inventory: 42
Minimum: 1
-
+

Technical Details

Technical

Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 3
Orientation A
Ingress Protection IP68 - Dust Tight, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M8-3
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Max Current Rating 4A
Number of Ports 1
Cable Opening 0.118 ~ 0.197 (3.00mm ~ 5.00mm)
Thread Size M8
Voltage - Rated DC 125V
Fastening Type Threaded
Voltage - Rated 48VAC 60VDC
Gender Male
Color Black, Silver
Connector Type Receptacle, Female Sockets
Termination Axial Pierce
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
JESD-609 Code e4
Series SACC
Published 2009
Packaging Bulk
Operating Temperature -25°C~85°C

Dimensions

Length 33.9mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, IP68, Waterproof

Physical

Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Insert Material Polyamide (PA66), Nylon 6/6
Weight 16.499989g
Housing Material Plastic
Shell Material Brass
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 4 Weeks
