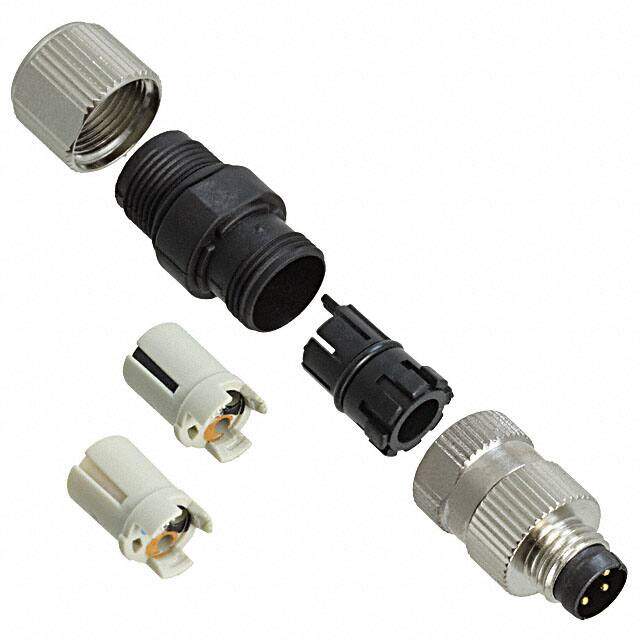

1506752 image
Favorite
1506752 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description Circular Metric Connectors M8 3P MALE PLUG SACC-M 8MS-3PCON
PDF
/
Buying Options
Total Price: USD $20.77
Unit Price: USD $20.772054
≥1 USD $20.772054
≥10 USD $19.596281
≥100 USD $18.48706
≥500 USD $17.440615
≥1000 USD $16.453416
Inventory: 8279
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Copper Zinc
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Brass
Housing Material Plastic
Weight 13.260007g
Insert Material Polyamide (PA66), Nylon 6/6
Backshell Material, Plating Polyamide (PA66), Nylon 6/6

Technical

Operating Temperature -25°C~85°C
Packaging Bulk
Published 2009
Series SACC
JESD-609 Code e4
Feature Backshell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
Termination Axial Pierce
Connector Type Plug, Male Pins
Color Black, Silver
Voltage - Rated 48VAC 60VDC
Fastening Type Threaded
Voltage - Rated DC 60V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 3
Orientation A
Ingress Protection IP68 - Dust Tight, Waterproof
Depth 3.91mm
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M8-3
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Max Voltage Rating (AC) 60V
Number of Ports 1
Cable Opening 0.118 ~ 0.197 (3.00mm ~ 5.00mm)
Thread Size M8

Dimensions

Length 35.4mm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, IP68, Waterproof
