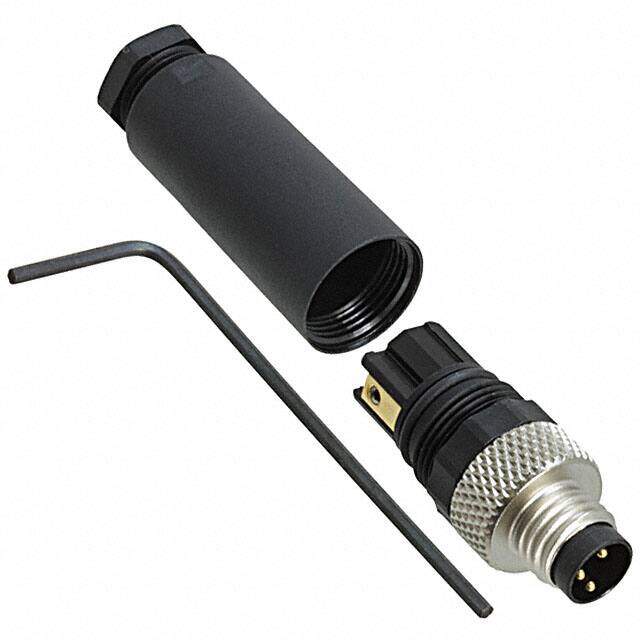

1501252 image
Favorite
1501252 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description Circular Metric Connectors M8 PLG 3P SCREW TERM SACC-M 8MS-3CON-M-SW
PDF
/
Buying Options
Total Price: USD $15.07
Unit Price: USD $15.0744
≥1 USD $15.0744
Inventory: 919
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB

Dimensions

Length 45mm

Technical

Thread Size M8
Cable Opening 0.138 ~ 0.197 (3.50mm ~ 5.00mm)
Number of Ports 1
Max Voltage Rating (AC) 60V
Insulation Resistance 100MOhm
Contact Gender Male
Number of Contacts 3
Approval Agency IEC, UL
Shell Size - Insert M8-3
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Current Rating (Amps) 4A
Contact Finish - Mating Gold
Voltage - Rated DC 60V
Fastening Type Threaded
Voltage - Rated 48VAC 60VDC
Gender Male
Color Black, Silver
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Positions 3
Connector Type Plug, Male Pins
Termination Screw
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell
Series SACC
Published 2007
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Backshell Material, Plating Polybutylene Terephthalate (PBT)
Insert Material Polyamide (PA), Nylon
Weight 9.969989g
Housing Material Plastic
Shell Material Brass
Number of Pins 3
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 4 Weeks
