1457940
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

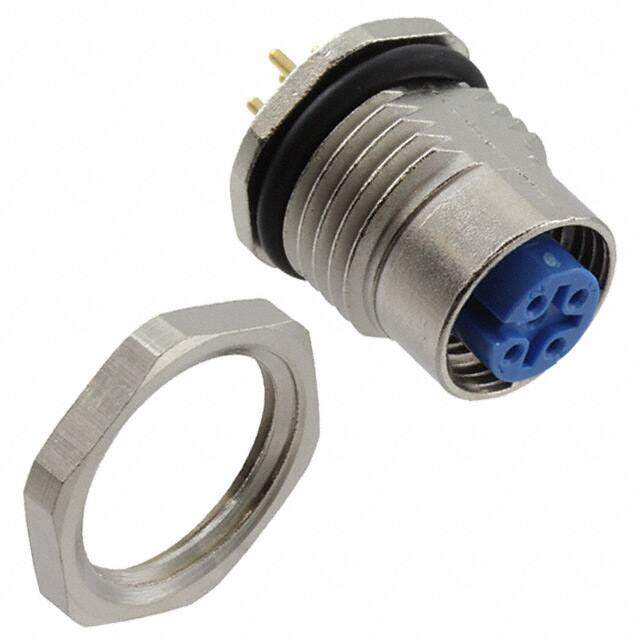

Circular Metric Connectors SACC-DSI-FS-5CON- L180/SH BU
PDF
/
Buying Options
Total Price: USD $14.78
Unit Price: USD $14.7752
≥1 USD $14.7752
≥10 USD $13.59688
≥100 USD $12.562
≥500 USD $11.970816
≥1000 USD $11.905062
Inventory: 57
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Zinc
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Shell Material Zinc Die Cast
Insert Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2013
Series DSI
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 5
Color Silver
Voltage - Rated 60V
Fastening Type Push-Twist
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance YES
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 5
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code unknown
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-5
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Body/Shell Style PLUG
Thread Size M12
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
