1456666
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

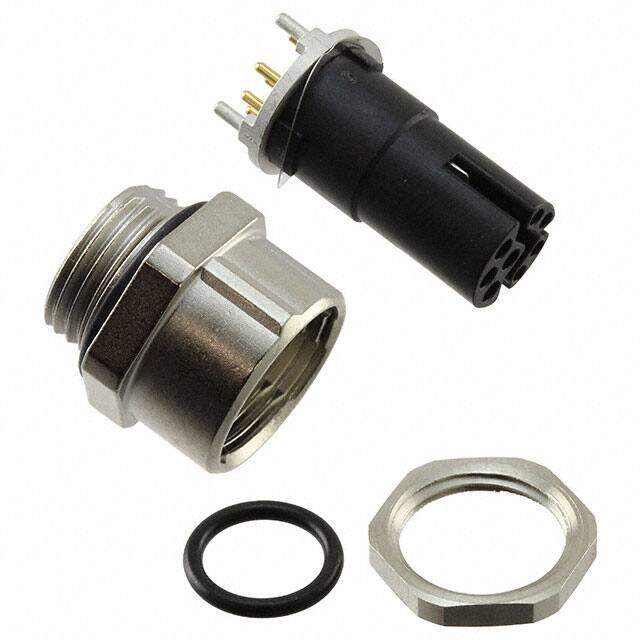

Circular Metric Connectors VS-08-DSIV-L180-HYB SCO
PDF
/
Buying Options
Total Price: USD $27.45
Unit Price: USD $27.4472
≥1 USD $27.4472
Inventory: 50
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Thread Size M12
Number of Ports 1
Contact Gender Female
Shell Size - Insert M12-8
Shell Finish Nickel
Current Rating 6A
Reach Compliance Code unknown
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Y
Current Rating (Amps) 0.5A 6A
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 30V
Color Silver
Number of Positions 8 (4 Data + 4 Power)
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Shielded
JESD-609 Code e4
Series DSIV
Published 2012
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Insert Material Polyphthalamide (PPA)
Shell Material Zinc Die Cast
Mounting Feature Bulkhead - Rear Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Panel, Through Hole
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 13 Weeks
