1456556
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

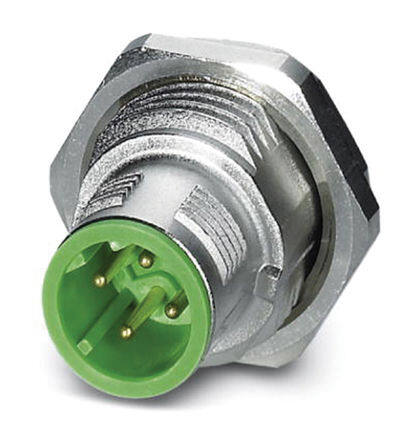

Phoenix Contact M12 4-Pin Male Flush Type Connector
PDF
/
Inventory: 1124
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-4
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation D
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 250V
Color Silver
Number of Positions 4
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series DSI
Published 2015
Packaging Bulk
Operating Temperature -20°C~60°C
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Zinc Die Cast
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Panel, Through Hole
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 8 Weeks
