1456466
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

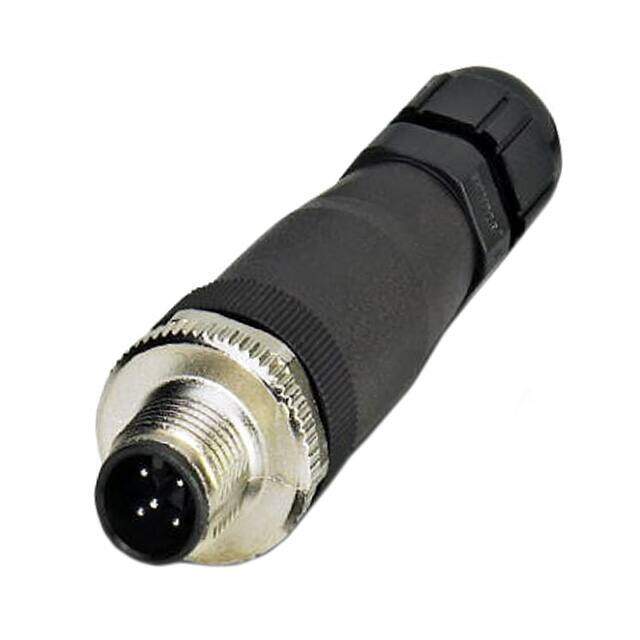

Plug-in connector SACC-M12MS-5CON-PG7-M SKIN 1456466 Phoenix Contact
PDF
/
Buying Options
Total Price: USD $18.78
Unit Price: USD $18.7792
≥1 USD $18.7792
≥10 USD $17.27616
≥100 USD $15.961616
≥500 USD $15.210448
≥1000 USD $15.126989
Inventory: 110
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Housing Material PBT
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -20°C~80°C
Packaging Bulk
Published 2013
Series SKINTOP?
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Plug, Male Pins
Number of Positions 5
Color Black, Silver
Voltage - Rated 48VAC 60VDC
Fastening Type Threaded
Voltage - Rated DC 60V
Contact Finish - Mating Copper Alloy
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-5
Contact Gender Male
Cable Opening 0.157 ~ 0.236 (4.00mm ~ 6.00mm)
Compliance
Material Flammability Rating UL94 HB
REACH SVHC Unknown
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
