1456462
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

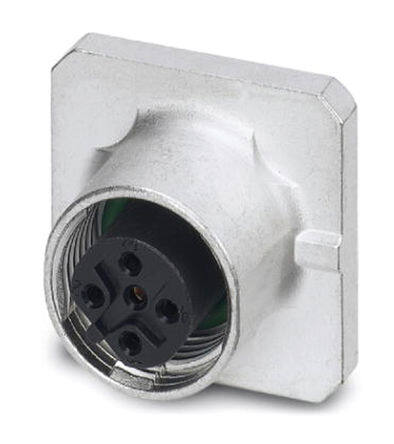

Flush-type connector SACC-SQ-M12FSB-5CON-20-L180 1456462 Phoenix Contact
PDF
/
Inventory: 1147
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Shell Size - Insert M12-5
Shell Finish Nickel
Current Rating 4A
Reach Compliance Code not_compliant
Ingress Protection IP20
Orientation B
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 60V
Color Silver
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
Series SACC
Published 2015
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Zinc Die Cast
Mounting Feature Flange
Mounting Type Panel Mount, Through Hole
Mount Flanges, Panel, Through Hole
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 8 Weeks
