1456297
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

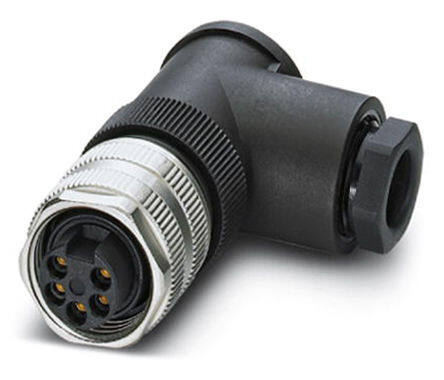

Plug-in connector SACC-MINFR-5CON-PG11/2,5 1456297 Phoenix Contact
PDF
/
Buying Options
Total Price: USD $45.74
Unit Price: USD $45.7424
≥1 USD $45.7424
≥10 USD $42.086
≥100 USD $38.884208
≥500 USD $37.054336
≥1000 USD $36.85088
Inventory: 14
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Shell Material Zinc Die Cast
Housing Material Plastic
Insert Material Polyamide (PA66), Nylon 6/6 and Polyurethane (PUR)
Backshell Material, Plating Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2013
Series SACC
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Receptacle, Female Sockets
Number of Positions 5
Color Black, Silver
Voltage - Rated 300V
Fastening Type Threaded
Contact Finish - Mating Gold
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 9A
Shell Finish Nickel
Shell Size - Insert 7/8-5
Cable Opening 0.315 ~ 0.394 (8.00mm ~ 10.00mm)
Compliance
Material Flammability Rating UL94 HB
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
