1456255
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

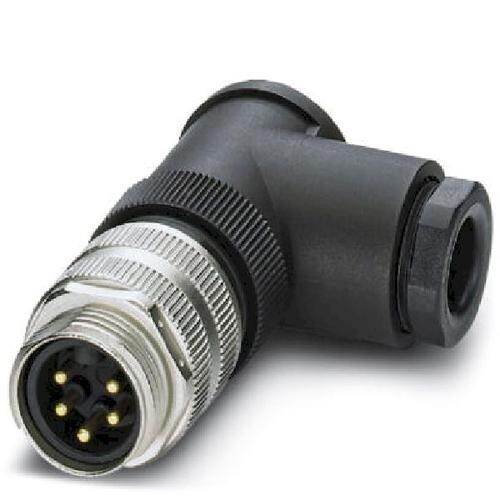

Plug-in connector SACC-MINMR-5CON-PG13/2,5 1456255 Phoenix Contact
PDF
/
Buying Options
Total Price: USD $44.04
Unit Price: USD $44.0352
≥1 USD $44.0352
≥10 USD $40.51256
≥100 USD $37.430096
≥500 USD $35.6686
≥1000 USD $35.4728
Inventory: 87
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Cable Opening 0.394 ~ 0.472 (10.00mm ~ 12.00mm)
Shell Size - Insert 7/8-5
Shell Finish Nickel
Current Rating 9A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 300V
Color Black, Silver
Number of Positions 5
Connector Type Plug, Male Pins
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
Series SACC
Published 2013
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Backshell Material, Plating Polybutylene Terephthalate (PBT)
Insert Material Polyamide (PA66), Nylon 6/6 and Polyurethane (PUR)
Housing Material Plastic
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line), Right Angle
Mount Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
