1456132
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

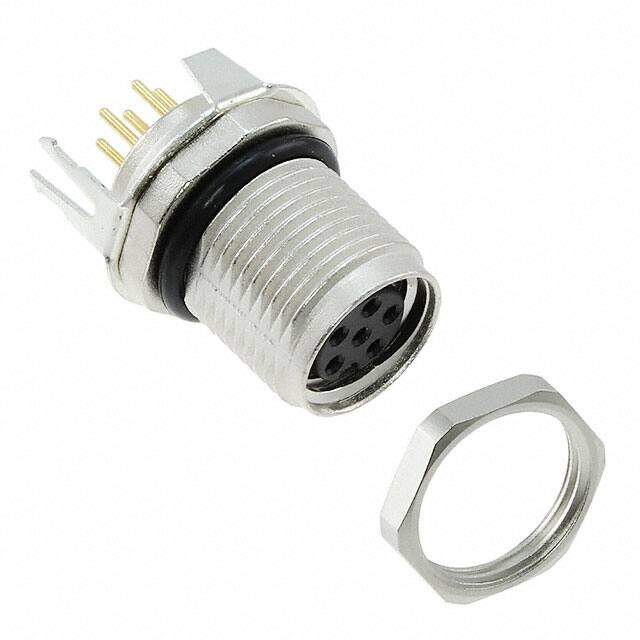

Flush-type connector SACC-DSI-M8FS-6CON-M10-L180 SH 1456132 Phoenix Contact
PDF
/
Buying Options
Total Price: USD $19.71
Unit Price: USD $19.712
≥1 USD $19.712
Inventory: 407
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Shell Material Zinc Die Cast
Insert Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2013
Series DSI
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 6
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Color Silver
Voltage - Rated 30VAC/DC
Fastening Type Threaded
Contact Finish - Mating Gold
Current Rating (Amps) 1.5A
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 1.5A
Shell Finish Nickel
Shell Size - Insert M8-6
Compliance
Material Flammability Rating UL94 HB
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
