1456116
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

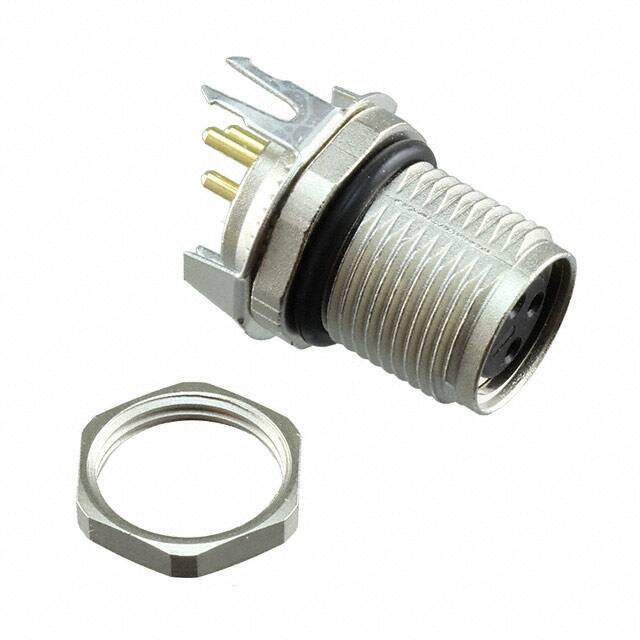

Circular connector; Receptacle; Female Sockets; 3 pos; 4A; 60V; M8-3
PDF
/
Buying Options
Total Price: USD $16.17
Unit Price: USD $16.1656
≥1 USD $16.1656
≥10 USD $15.72824
≥100 USD $14.69952
≥500 USD $13.523576
≥1000 USD $12.494627
≥3000 USD $11.906646
Inventory: 523
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Thread Size M8
Contact Gender Female
Shell Size - Insert M8-3
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 50VAC 60VDC
Color Silver
Number of Positions 3
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series DSI
Published 2013
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Housing Material Zinc
Shell Material Zinc Die Cast
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Front Side Nut, Panel
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
