1456048
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

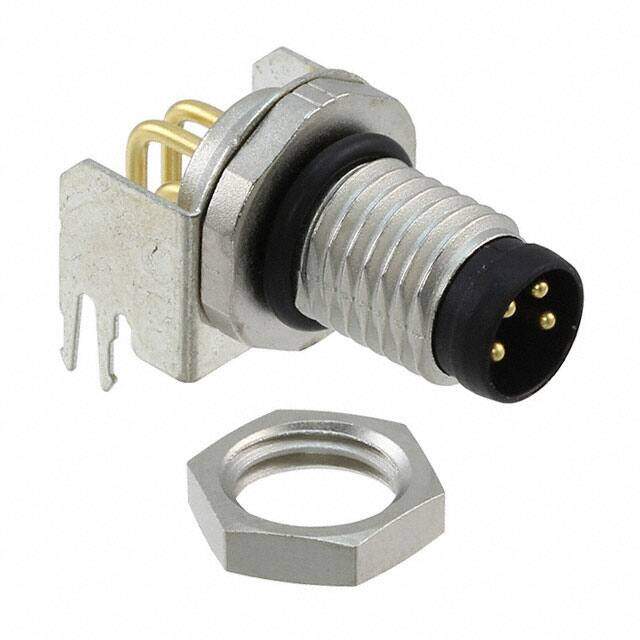

Circular Metric Connectors SACC-DSI-M8MS-4CON- L90 SH
PDF
/
Buying Options
Total Price: USD $20.74
Unit Price: USD $20.7416
≥1 USD $20.7416
≥10 USD $20.17752
≥100 USD $18.85752
≥500 USD $17.348936
≥1000 USD $16.028954
≥3000 USD $15.274635
Inventory: 731
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Thread Size M8
Number of Ports 1
Max Current Rating 4A
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M8-4
Shell Finish Nickel
Current Rating 4A
Depth 22.3mm
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 4
Mixed Contacts NO
Filter Feature NO
IEC Conformance YES
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 50VAC 60VDC
Color Silver
Number of Positions 4
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
JESD-609 Code e4
Series DSI
Published 2013
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Zinc Die Cast
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Bulkhead, Panel, Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
