1456035
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

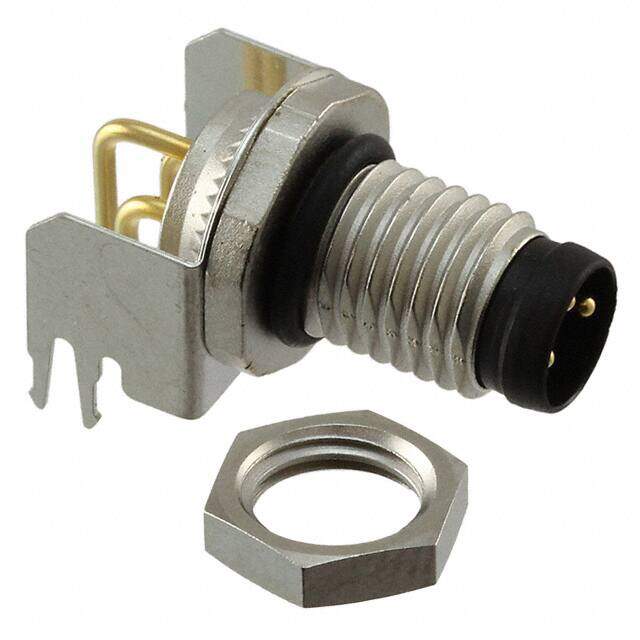

Circular Metric Connectors SACC-DSI-M 8MS- 3CON-L90 SH
PDF
/
Buying Options
Total Price: USD $20.27
Unit Price: USD $20.2664
≥1 USD $20.2664
Inventory: 41
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Thread Size M8
Max Current Rating 4A
Contact Gender Male
Shell Size - Insert M8-3
Shell Finish Nickel
Current Rating 4A
Depth 22.3mm
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 50VAC 60VDC
Color Silver
Number of Positions 3
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series DSI
Published 2012
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Zinc Die Cast
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Bulkhead, Panel, Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
