RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors

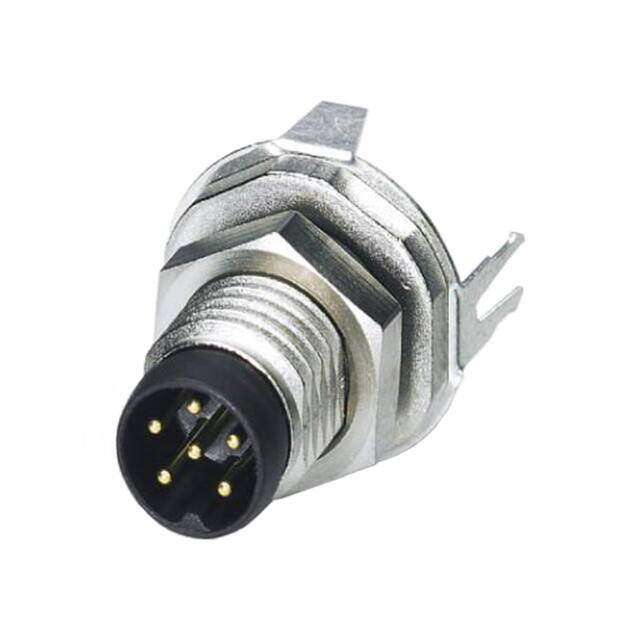

Description Conn Circular PIN 6 POS Solder ST Thru-Hole 6 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $24.34
Unit Price: USD $24.3408
≥1 USD $24.3408
≥10 USD $23.67728
≥100 USD $22.12848
≥500 USD $20.358272
≥1000 USD $18.809261
Inventory: 207
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Material Copper Alloy
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Shell Material Zinc Die Cast
Insert Material Polyamide (PA66), Nylon 6/6

Technical

Operating Temperature -40°C~85°C
Packaging Bulk
Published 2012
Series DSI
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 6
Color Silver
Voltage - Rated 30VAC/DC
Fastening Type Threaded
Contact Finish - Mating Gold
Current Rating (Amps) 2A
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 1.5A
Shell Finish Nickel
Shell Size - Insert M8-6
Max Current Rating 1.5A

Dimensions

Length 20.6mm

Compliance

Material Flammability Rating UL94 HB
Radiation Hardening No
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
