1455007
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

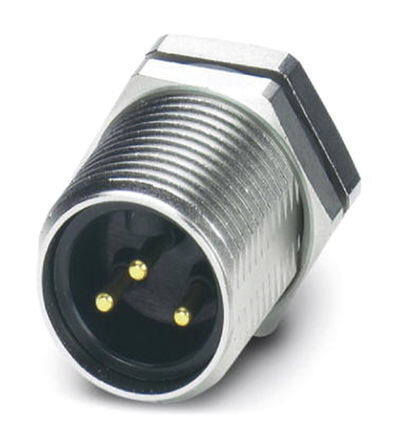

Flush-type connector SACC-DSI-MINMS-3CON-UNF PCB 1455007 Phoenix Contact
PDF
/
Inventory: 1128
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Shell Size - Insert 7/8-3
Shell Finish Nickel
Current Rating 12A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Keyed
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 250V
Color Silver
Number of Positions 3
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series DSI
Published 2013
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Insert Material Polyurethane (PUR)
Shell Material Zinc Die Cast
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Panel, Through Hole
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 6 Weeks
