1453960
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

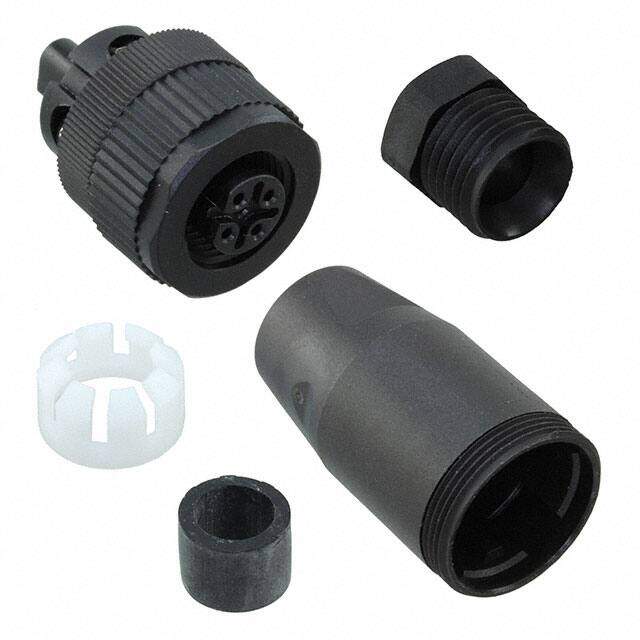

Circular Metric Connectors SACC-M12FSB- 5CON-PG 7
PDF
/
Buying Options
Total Price: USD $16.48
Unit Price: USD $16.4824
≥1 USD $16.4824
≥10 USD $15.16328
≥100 USD $14.009424
≥500 USD $13.35004
≥1000 USD $13.276771
Inventory: 38
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Copper Zinc
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Plastic
Housing Material PBT
Insert Material Polyamide (PA66), Nylon 6/6
Backshell Material, Plating Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2011
Series SACC
Feature Backshell, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Receptacle, Female Sockets
Number of Positions 5
Color Black
Voltage - Rated 48VAC 60VDC
Fastening Type Threaded
Contact Finish - Mating Copper Alloy
Orientation B
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Size - Insert M12-5
Contact Gender Female
Cable Opening 0.157 ~ 0.236 (4.00mm ~ 6.00mm)
Thread Size M12
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings IP67
