1441998
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

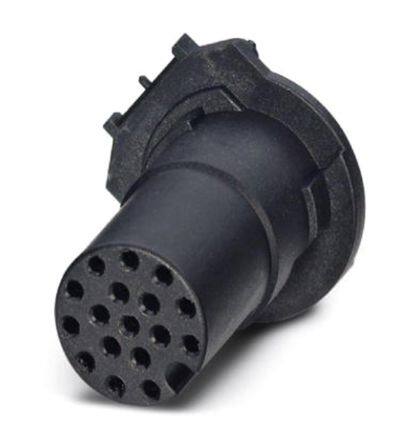

Circular Metric Connectors SACC-CI-M12 FS-17CON-L180 THR
PDF
/
Buying Options
Total Price: USD $27.22
Unit Price: USD $27.22483
≥1 USD $27.22483
≥10 USD $25.6838
≥100 USD $24.23
Inventory: 319
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Thread Size M12
Shell Size - Insert M12-17
Current Rating 1.5A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Contact Finish - Mating Gold
Voltage - Rated 30V
Number of Positions 17
Connector Type Insert, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide, Insert Only, Requires Shell
Series SACC
Published 2013
Packaging Tray
Operating Temperature -25°C~85°C
Physical
Insert Material Polyphthalamide (PPA)
Mounting Type Through Hole
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 9 Weeks
