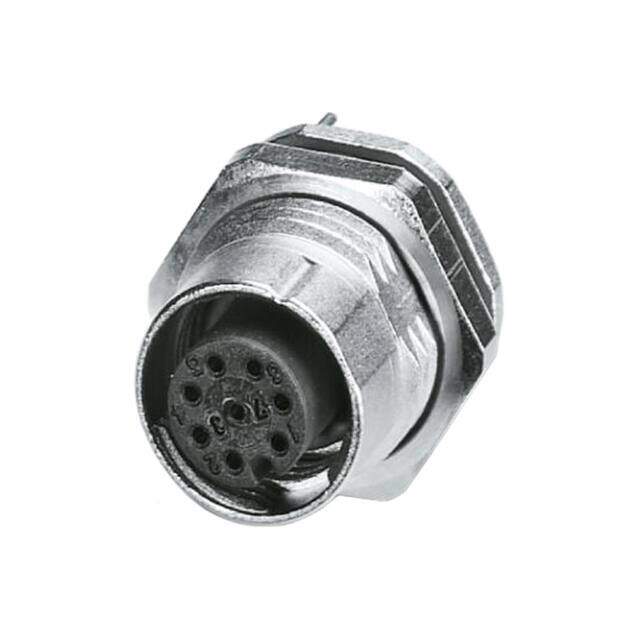

1441930
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular connector; Receptacle; Female Sockets; 8 position; M12-8; 2A; 30V
PDF
/
Buying Options
Total Price: USD $26.9
Unit Price: USD $26.9016
≥1 USD $26.9016
≥10 USD $26.16944
≥100 USD $24.457136
≥500 USD $22.500456
≥1000 USD $20.788486
Inventory: 104
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Zinc
Mount Bulkhead, Front Side Nut, Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Shell Material Zinc Die Cast
Insert Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2013
Series DSI
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 8
Color Silver
Gender Receptacle
Fastening Type Push-Twist
Voltage - Rated DC 30V
Contact Finish - Mating Gold
Orientation A
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 2A
Shell Finish Nickel
Shell Size - Insert M12-8
Contact Gender Female
Max Current Rating 2A
Plating Nickel, Zinc
Number of Ports 1
Thread Size M12
Dimensions
Height 22.6mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
