1441901
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

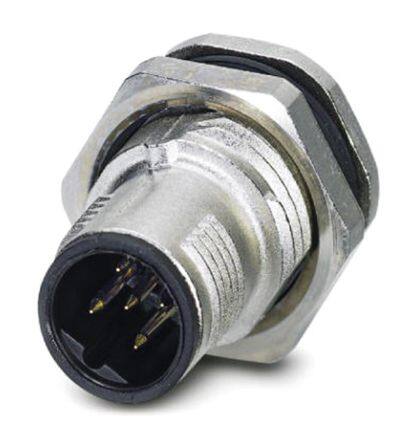

Panel feed-through SACC-DSI-M12MSB-5CON-M16 SH 1441901 Phoenix Contact
PDF
/
Inventory: 3354
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Shell Size - Insert M12-5
Shell Finish Nickel
Current Rating 4A
Reach Compliance Code not_compliant
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation B
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 60V
Color Silver
Number of Positions 5
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series DSI
Published 2013
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Zinc Die Cast
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Front Side Nut, Panel
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 8 Weeks
