1441846
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

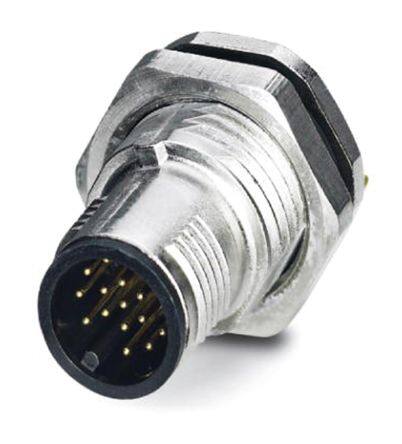

Circular Metric Connectors SACC-DSI- M12MS-17CON-M16
PDF
/
Inventory: 9135
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Zinc
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Shell Material Zinc Die Cast
Insert Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2013
Series DSI
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 17
Color Silver
Voltage - Rated 30V
Fastening Type Push-Twist
Contact Finish - Mating Gold
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 1.5A
Shell Finish Nickel
Shell Size - Insert M12-17
Contact Gender Male
Thread Size M12
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
