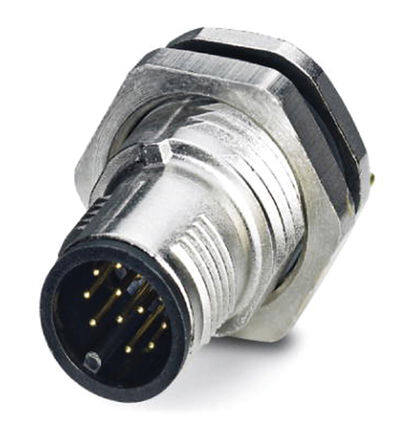

1441820
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Conn Sensor Actuator M 12 POS Solder ST Thru-Hole 12 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $37.66
Unit Price: USD $37.6552
≥1 USD $37.6552
≥10 USD $36.62648
≥100 USD $34.230416
≥500 USD $31.491944
≥1000 USD $29.095792
Inventory: 95
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Thread Size M12
Backshell Type SOLID
Empty Shell NO
Shell Size - Insert M12-12
Shell Finish Nickel
Current Rating 1.5A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 12
Mixed Contacts NO
Filter Feature NO
IEC Conformance YES
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Twist
HTS Code 8536.69.40.20
Voltage - Rated 30V
Color Silver
Number of Positions 12
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series DSI
Published 2013
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Zinc Die Cast
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Front Side Nut, Panel
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 14 Weeks
