RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors

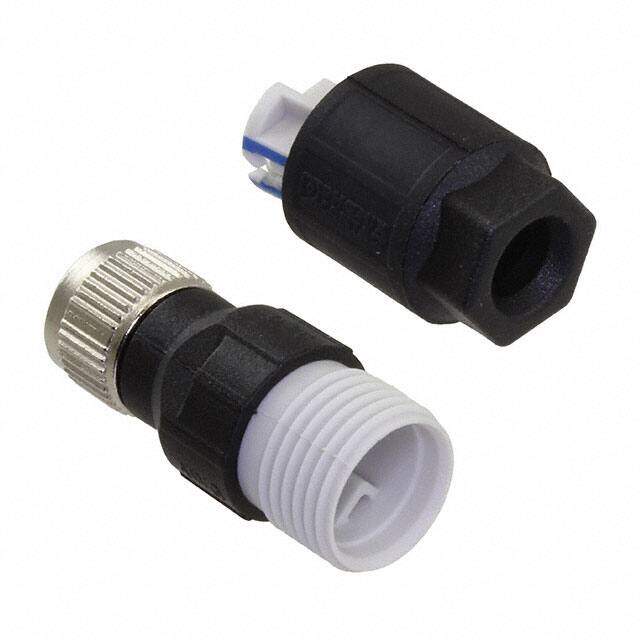

Description Circular Metric Connectors SACC-M8FS-3QO-0.25-M
PDF
/
Buying Options
Total Price: USD $11.44
Unit Price: USD $11.44
≥1 USD $11.44
Inventory: 244
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP65, Water Resistant, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 HB

Dimensions

Length 38.8mm

Technical

Wire/Cable Diameter 5 mm
Thread Size M8
Cable Opening 0.098 ~ 0.197 (2.50mm ~ 5.00mm)
Cable Length 250mm
Number of Ports 1
Max Current Rating 4A
Contact Gender Female
Shell Size - Insert M8-3
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Orientation A
Contact Finish - Mating Gold
Voltage - Rated DC 60V
Fastening Type Threaded
Voltage - Rated 48VAC 60VDC
Gender Receptacle
Color Black, Silver
Number of Positions 3
Connector Type Receptacle, Female Sockets
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
Series SACC
Published 2010
Packaging Bulk
Operating Temperature -25°C~80°C

Physical

Backshell Material, Plating Polyamide (PA6), Nylon 6
Insert Material Thermoplastic Polyurethane (TPU), Glass Filled
Housing Material Plastic
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Tin

Supply Chain

Factory Lead Time 4 Weeks
