Package /
Category Connectors, Interconnects / Circular Connectors

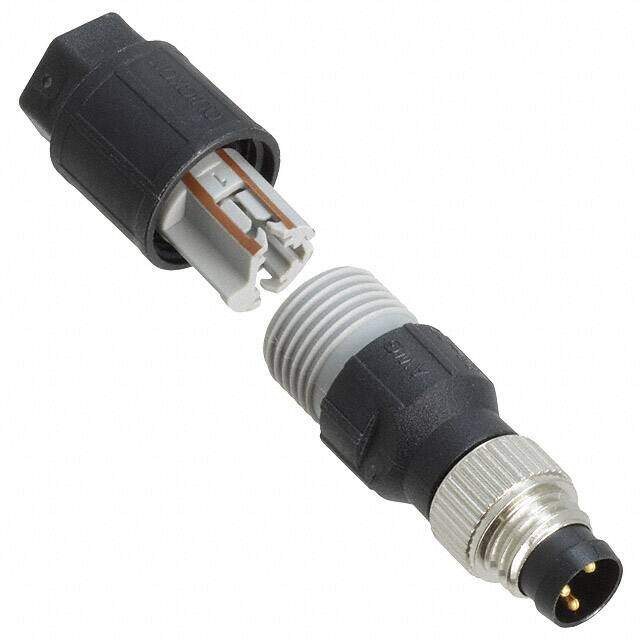

Description Circular Metric Connectors SACC-M8MS-3QO-0.5-M
PDF
/
Buying Options
Total Price: USD $13.87
Unit Price: USD $13.8688
≥1 USD $13.8688
≥10 USD $12.75824
≥100 USD $11.787776
≥500 USD $11.233024
≥1000 USD $11.171389
Inventory: 189
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP65, Water Resistant, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB

Technical

Wire/Cable Diameter 5 mm
Thread Size M8
Cable Opening 0.098 ~ 0.197 (2.50mm ~ 5.00mm)
Cable Length 500mm
Max Current Rating 4A
Contact Gender Male
Shell Size - Insert M8-3
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Orientation A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 48VAC 60VDC
Color Black, Silver
Number of Positions 3
Connector Type Plug, Male Pins
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
JESD-609 Code e4
Series SACC
Published 2010
Packaging Bulk
Operating Temperature -25°C~80°C

Physical

Backshell Material, Plating Polyamide (PA6), Nylon 6
Insert Material Thermoplastic Polyurethane (TPU), Glass Filled
Housing Material Plastic
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Tin

Supply Chain

Factory Lead Time 4 Weeks
