1440779
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

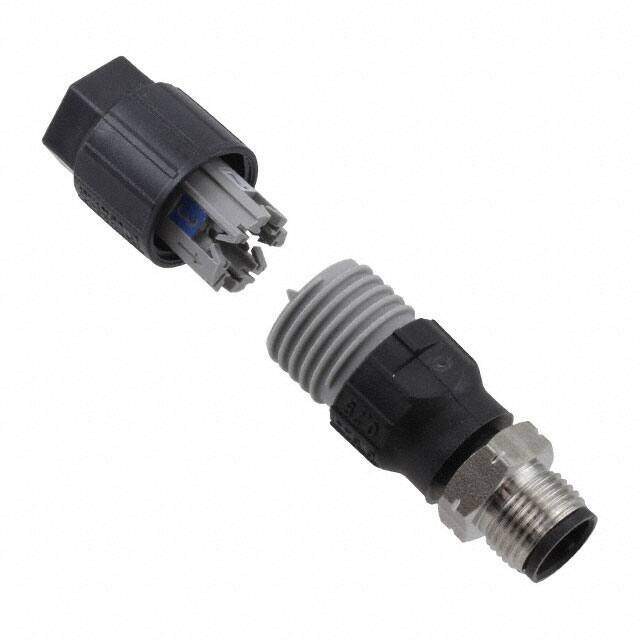

Circular Metric Connectors SACC-M12MS- 4QO-0.75-VA
PDF
/
Buying Options
Total Price: USD $13.89
Unit Price: USD $13.8864
≥1 USD $13.8864
Inventory: 24
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Tin
Contact Plating Brass, Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Stainless Steel
Housing Material Polyamide
Insert Material Thermoplastic Polyurethane (TPU)
Backshell Material, Plating Polyamide (PA6), Nylon 6
Technical
Operating Temperature -25°C~80°C
Packaging Bulk
Published 2012
Series SACC
Feature Backshell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Plug, Male Pins
Number of Positions 4
Color Black, Silver
Voltage - Rated 250V
Fastening Type Threaded
Contact Finish - Mating Gold
Orientation A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Current Rating 4A
Shell Size - Insert M12-4
Contact Gender Male
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Thread Size M12
Wire/Cable Diameter 8 mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP65, IP67, Water Resistant, Waterproof
