RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors

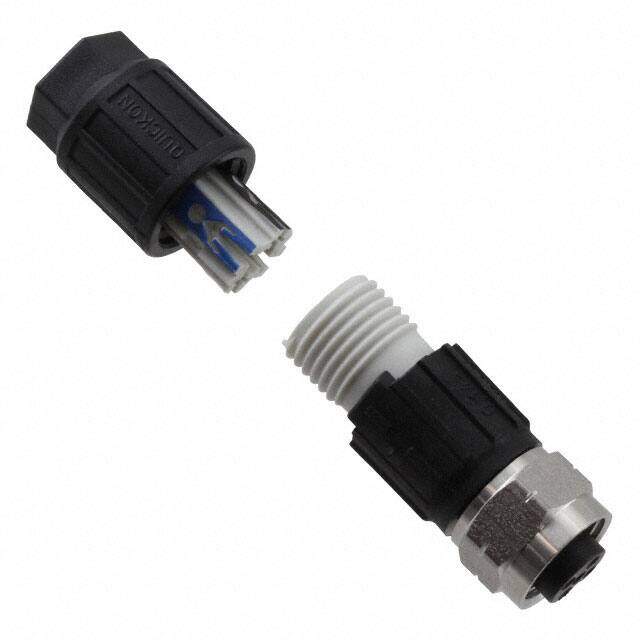

Description Circular Metric Connectors SACC-M12FS- 4QO-0.34-VA
PDF
/
Buying Options
Total Price: USD $14.17
Unit Price: USD $14.168
≥1 USD $14.168
Inventory: 13
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP65, Water Resistant, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Thread Size M12
Cable Opening 0.138 ~ 0.236 (3.50mm ~ 6.00mm)
Contact Gender Female
Shell Size - Insert M12-4
Current Rating 4A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Orientation A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 125V
Color Black, Silver
Number of Positions 4
Connector Type Receptacle, Female Sockets
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
Series SACC
Published 2012
Packaging Bulk
Operating Temperature -25°C~80°C

Physical

Backshell Material, Plating Polyamide (PA6), Nylon 6
Insert Material Thermoplastic Polyurethane (TPU)
Housing Material Plastic
Shell Material Stainless Steel
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Tin

Supply Chain

Factory Lead Time 4 Weeks
