1440669 image
Favorite
1440669 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors

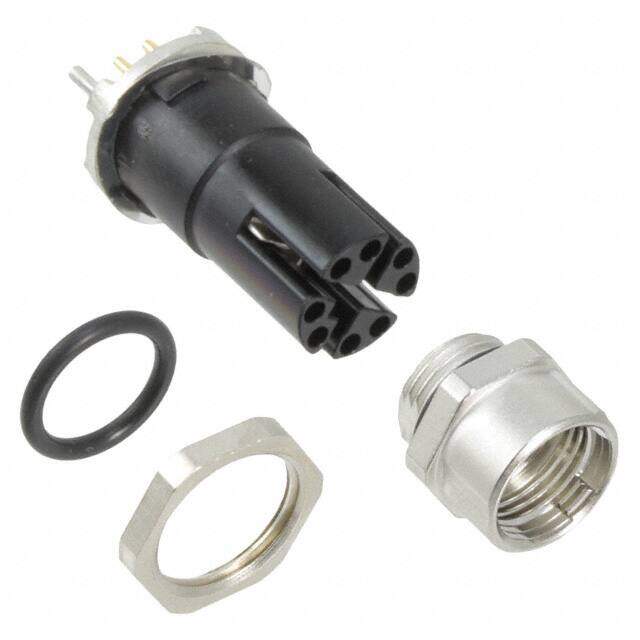

Description Circular Metric Connectors SACC-DSI-FS -8CON-L180-10G SCO
PDF
/
Buying Options
Total Price: USD $34.44
Unit Price: USD $34.4432
≥1 USD $34.4432
≥10 USD $31.6888
≥100 USD $29.2776
≥500 USD $27.899784
≥1000 USD $27.746646
Inventory: 123
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Contact Material Copper Zinc
Mount Bulkhead, Panel, Screw, Through Hole
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Rear Side Nut
Shell Material Zinc Die Cast
Housing Material Zinc
Insert Material Polyphthalamide (PPA)
Backshell Material, Plating Zinc Die Cast, Nickel

Technical

Operating Temperature -40°C~85°C
Packaging Bulk
Published 2012
Series DSIV
JESD-609 Code e4
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 8
Color Silver
Gender Receptacle
Voltage - Rated 50VAC 60VDC
Fastening Type Push-Twist
Contact Finish - Mating Gold
Current Rating (Amps) 0.5A
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code not_compliant
Current Rating 500mA
Shell Finish Nickel
Shell Size - Insert M12-8
Contact Gender Female
Thread Size M12

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP65, IP67, Waterproof
