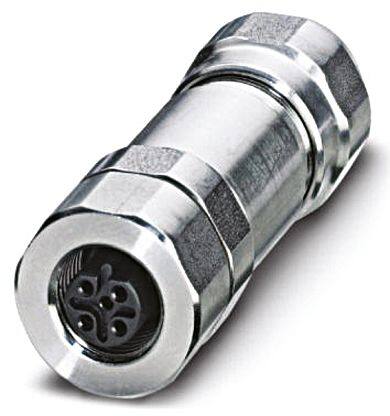

1440135
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Metric Connectors SACC-M12FSB- 5CON-DM 5-8 SH VA
PDF
/
Buying Options
Total Price: USD $81.23
Unit Price: USD $81.2328
≥1 USD $81.2328
≥10 USD $74.73664
≥100 USD $69.050432
≥500 USD $65.800856
Inventory: 63
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Stainless Steel
Housing Material Polyamide
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Stainless Steel
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2011
Series SACC
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Receptacle, Female Sockets
Number of Positions 5
Color Silver
Voltage - Rated 48VAC 60VDC
Fastening Type Threaded
Contact Finish - Mating Gold
Orientation B
Shielding Shielded
Ingress Protection IP67/69K - Dust Tight, Water Resistant, Waterproof
Reach Compliance Code not_compliant
Current Rating 4A
Shell Size - Insert M12-5
Contact Gender Female
Cable Opening 0.217 ~ 0.339 (5.50mm ~ 8.60mm)
Thread Size M12
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP65, IP67, Waterproof
