1440041
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

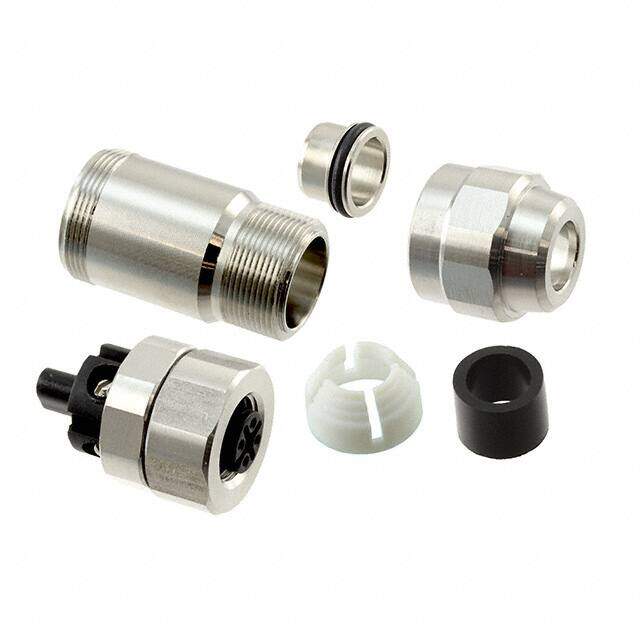

Phoenix Contact 1440041 SACC-M12FS-5CON-DM 5-8 SH VA Field Attachable Plug Connector M12
PDF
/
Buying Options
Total Price: USD $80.32
Unit Price: USD $80.318521
≥1 USD $80.318521
≥10 USD $75.772196
≥100 USD $71.483198
≥500 USD $67.436977
≥1000 USD $63.619796
Inventory: 8480
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Stainless Steel
Housing Material Polyamide
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Stainless Steel
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2013
Series SACC
Feature Backshell, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Receptacle, Female Sockets
Number of Positions 5
Color Silver
Gender Receptacle
Voltage - Rated 48VAC 60VDC
Fastening Type Threaded
Contact Finish - Mating Gold
Orientation A
Shielding Shielded
Ingress Protection IP65/67/69K - Dust Tight, Water Resistant, Waterproof
Current Rating 4A
Shell Size - Insert M12-5
Contact Gender Female
Cable Opening 0.217 ~ 0.339 (5.50mm ~ 8.60mm)
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status RoHS Compliant
Ratings Dust Tight, IP65, IP67, Water Resistant, Waterproof
