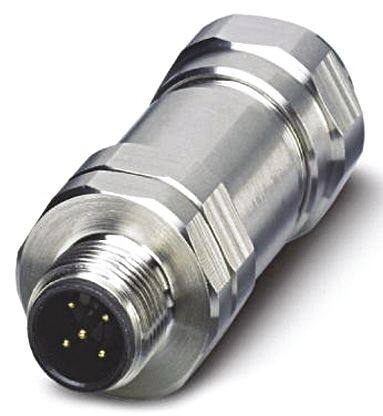

1440025
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Metric Connectors SACC-M12MS-5CON-DM 5-8 SH VA
PDF
/
Buying Options
Total Price: USD $77.17
Unit Price: USD $77.168339
≥1 USD $77.168339
≥10 USD $72.800317
≥100 USD $68.679549
≥500 USD $64.792021
≥1000 USD $61.124559
Inventory: 7424
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, IP67, Water Resistant, Waterproof
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Technical
Wire/Cable Diameter 8.6 mm
Thread Size M12
Cable Opening 0.217 ~ 0.339 (5.50mm ~ 8.60mm)
Contact Gender Male
Shell Size - Insert M12-5
Current Rating 4A
Ingress Protection IP65/67/69K - Dust Tight, Water Resistant, Waterproof
Shielding Shielded
Orientation A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 48VAC 60VDC
Color Silver
Number of Positions 5
Connector Type Plug, Male Pins
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell
Series SACC
Published 2013
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Stainless Steel
Insert Material Polyamide (PA), Nylon
Housing Material Polyamide
Shell Material Stainless Steel
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
