1439997
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

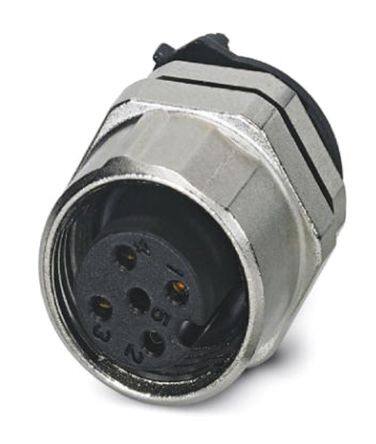

Circular Metric Connectors SACC-DSIV-FS- 4CON-L180 SCO THR
PDF
/
Buying Options
Total Price: USD $12.43
Unit Price: USD $12.434704
≥1 USD $12.434704
≥10 USD $11.730856
≥100 USD $11.066847
≥500 USD $10.440417
≥1000 USD $9.849452
Inventory: 4827
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Thread Size M12
Shell Size - Insert M12-4
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation A
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 250V
Color Silver
Number of Positions 4
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
Series DSIV
Published 2011
Packaging Tray
Operating Temperature -25°C~85°C
Physical
Insert Material Polyphthalamide (PPA)
Shell Material Metal
Mounting Feature Bulkhead - Rear Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Panel, Through Hole
Supply Chain
Factory Lead Time 13 Weeks
