1439890
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

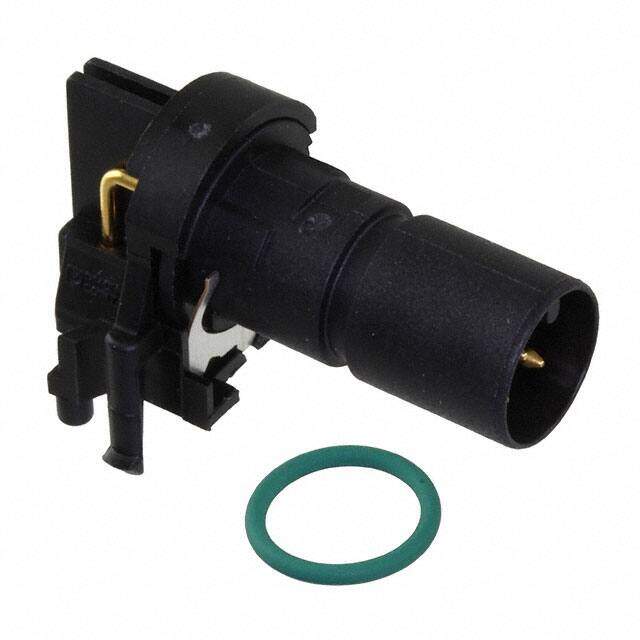

Circular Metric Connectors SACC-CI-M12MS-5CON- L90 SH SCO
PDF
/
Buying Options
Total Price: USD $14.58
Unit Price: USD $14.58433
≥1 USD $14.58433
≥10 USD $13.7588
≥100 USD $12.98
Inventory: 514
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Thread Size M12
Contact Gender Male
Number of Contacts 5
Shell Size - Insert M12-5
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation A
Current Rating (Amps) 4A
Contact Finish - Mating Gold
Fastening Type Push, Twist
Voltage - Rated 60V
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Number of Positions 5
Connector Type Insert, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Board Lock, Insert Only, Requires Shell
Series SACC
Published 2012
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Mounting Type Through Hole, Right Angle
Mount Panel, Through Hole
Contact Plating Gold
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 9 Weeks
