1437164
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

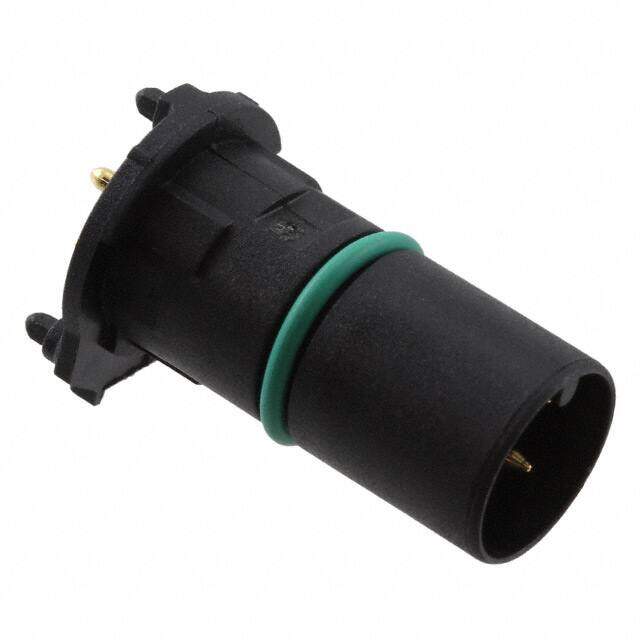

Circular Metric Connectors SACC-CI-M12MS- 4CON-L180 THR
PDF
/
Buying Options
Total Price: USD $5.18
Unit Price: USD $5.17616
≥1 USD $5.17616
≥10 USD $4.88317
≥100 USD $4.60676
≥500 USD $4.346
≥1000 USD $4.1
Inventory: 1396
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Thread Size M12
Number of Ports 1
Max Current Rating 4A
Contact Gender Male
Shell Size - Insert M12-4
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 250V
Gender Female
Number of Positions 4
Connector Type Insert, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Insert Only, Requires Shell
Series SACC
Published 2011
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Insert Material Polyamide (PA6T), Nylon 6/T
Housing Material Polyamide
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
