1437119
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

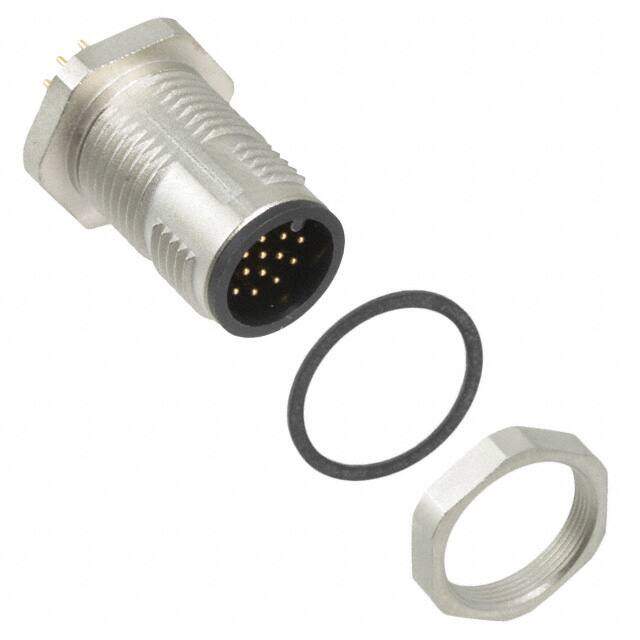

Circular Metric Connectors 17P MALE REAR MOUNT M12 THREAD SHIELDED
PDF
/
Buying Options
Total Price: USD $49.27
Unit Price: USD $49.2712
≥1 USD $49.2712
≥10 USD $45.3288
≥100 USD $41.879904
≥500 USD $39.909056
Inventory: 391
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Zinc
Mount Bulkhead, Front Side Nut, Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Shell Material Zinc Die Cast
Housing Material Polyamide
Insert Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2011
Series DSI
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 17
Color Silver
Voltage - Rated 30V
HTS Code 8536.69.40.20
Fastening Type Push-Twist
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance YES
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 17
Orientation A
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 1.5A
Shell Finish Nickel
Shell Size - Insert M12-17
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Thread Size M12
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
