1437038
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

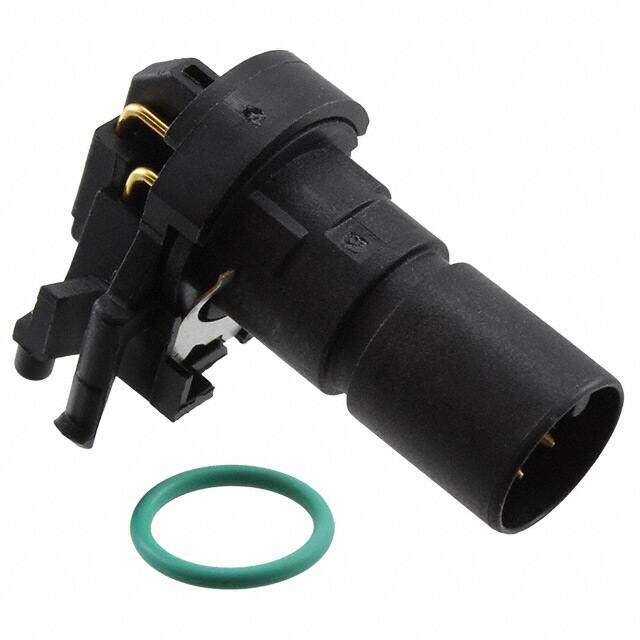

Connector; Sensor/Actuator; Flush; 8 Pos; Shielded; SACC-CI-M12MS-8CON-L90 SH SCO
PDF
/
Buying Options
Total Price: USD $24.55
Unit Price: USD $24.55066
≥1 USD $24.55066
≥10 USD $23.161
≥100 USD $21.85
Inventory: 406
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Height 15.9mm
Technical
Ambient Temperature Range High 85°C
Thread Size M12
Number of Ports 1
Max Current Rating 2A
Contact Gender Male
Shell Size - Insert M12-8
Current Rating 2A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation A
Contact Finish - Mating Gold
Fastening Type Push, Twist
Voltage - Rated 30V
Gender Female
Number of Positions 8
Connector Type Insert, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Board Lock, Insert Only, Requires Shell
Series SACC
Published 2012
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Housing Material Polyamide
Mounting Type Through Hole, Right Angle
Mount Panel, Through Hole
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
