1436987
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

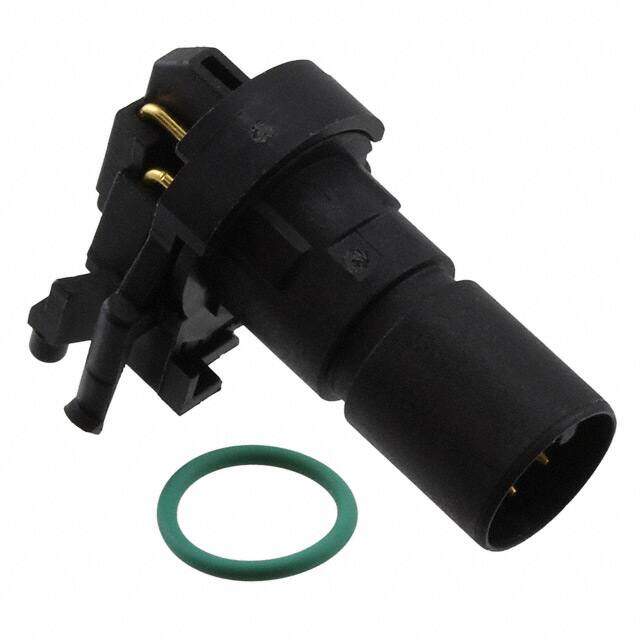

Circular Metric Connectors SACC-CI-M12MS-8CON- L90 SCO
PDF
/
Buying Options
Total Price: USD $35.93
Unit Price: USD $35.934
≥1 USD $35.934
≥10 USD $33.9
Inventory: 20
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Thread Size M12
Contact Gender Male
Shell Size - Insert M12-8
Current Rating 2A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Contact Finish - Mating Gold
Voltage - Rated 30V
Number of Positions 8
Connector Type Insert, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide, Board Lock, Insert Only, Requires Shell
Series SACC
Published 2011
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Mounting Type Through Hole, Right Angle
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 9 Weeks
